Profile Processing Equipment
Pipe Cutting Laser Machine
Equipment Description:
High-speed, precision processing of materials such as steel sections, angles, and special-shaped tubes is widely used in the construction, automotive, furniture, and fitness equipment industries.
Parameter

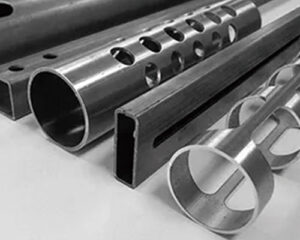

| Processing Types | Round tubes, square tubes, rectangular tubes, angle steels, channel steels, etc. |
| Chuck Types | Front pneumatic double – acting self – centering chuck, Rear pneumatic double – acting self – centering chuck |
| Accuracy | ±0.05mm |
| Laser Power | 1KW – 30KW |
| Product Specification | Tube length: 6 – 12 meters |
| Maximum Speed | 80m/min; Maximum speed of chuck: 100r/min |
| Equipment Weight | 1 – 5 tons |
| Customizable After – sales Service | 5 – year warranty for key components |
Advantages:
- High-precision and efficient cutting: The tube laser machine achieves precise cutting (accuracy ≤ 0.05mm) of complex tube shapes, supporting processes such as chamfering and drilling. It is 3-5 times faster than traditional methods, resulting in smooth cuts and no secondary processing.
- Intelligent material conservation and cost savings: Automated loading and unloading combined with intelligent stacking software significantly improves material utilization. No tool wear is required, resulting in lower long-term energy consumption and maintenance costs.
- Flexible production and wide application: No molds are required, and different tube specifications can be quickly switched, making it particularly suitable for customized needs. Widely used in the automotive, furniture, and construction industries, it is environmentally friendly and pollution-free.
